Ready Mix Concrete Batching Plant in Pakistan | High-Output RMC Plants for Every Project

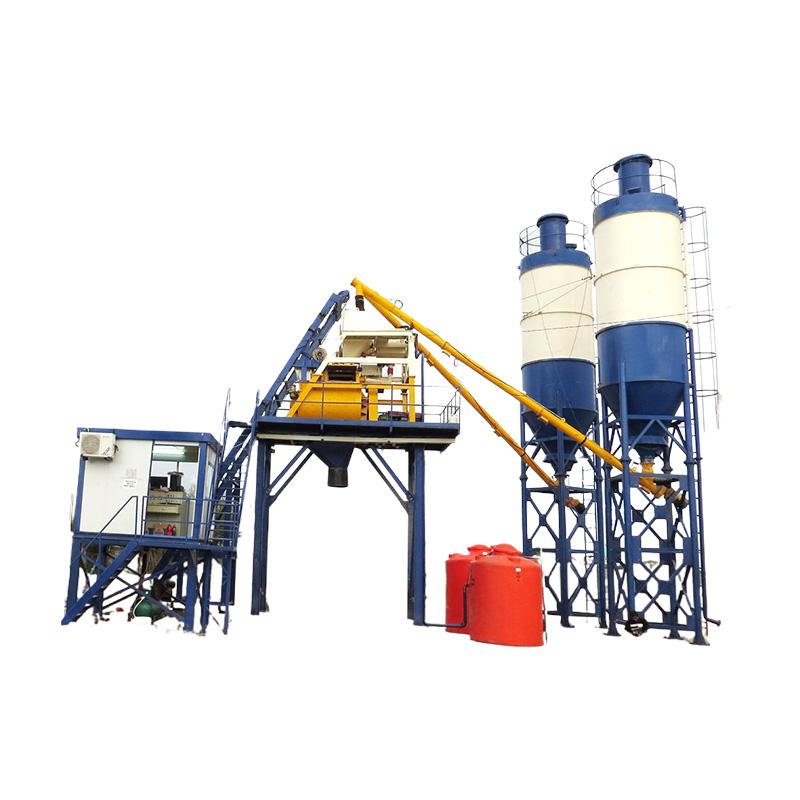

What Is a Ready Mix Concrete Batching Plant?
A Ready Mix Concrete Batching Plant also known as an RMC plant or concrete mixing plant is an advanced, automated system that produces large quantities of consistent, high-quality concrete in a controlled environment. Instead of mixing concrete manually on a construction site, an RMC plant combines all the ingredients cement, aggregates, sand, water and admixtures in exact proportions using a computerized PLC control system, producing ready-to-use concrete that is then delivered to the construction site by transit mixer trucks.
At KM Mughal, we supply and install reliable Ready Mix Concrete Batching Plants across Pakistan, catering to contractors, developers, road builders, infrastructure companies and commercial RMC plant operators. Our plants are available in multiple sizes, capacities and configurations to match every project scale and budget.
Why Pakistan’s Construction Industry Needs RMC Batching Plants
Pakistan’s construction sector is growing at a rapid pace. From major motorway projects and high-rise buildings in Lahore and Karachi, to dam construction and infrastructure development across rural areas, the demand for high-quality concrete at scale has never been greater. Yet many projects still rely on manual or on-site mixing, which leads to:
- Inconsistent concrete quality and varying strength
- Increased labor costs and slower production
- Material wastage due to inaccurate proportioning
- Project delays caused by concrete supply bottlenecks
- Structural failures and safety risks from poor-quality mixes
A Ready Mix Concrete Batching Plant solves all of these problems by automating the entire concrete production process delivering consistent, accurately batched concrete at high speed, every time.
Types of Ready Mix Concrete Batching Plants Available from KM Mughal
Stationary Concrete Batching Plant
A stationary RMC plant is a fixed, high-capacity installation designed for long-term, high-volume concrete production at a single location. It is the best choice for:
- Large-scale infrastructure projects: highways, dams, bridges
- Commercial RMC plants supplying concrete to multiple construction sites
- Precast concrete factories
- Urban development projects in major cities
Capacity range: 25 m³/hr to 240 m³/hr. Best suited for projects requiring more than 400 m³ of concrete per day.
Mobile Concrete Batching Plant
A mobile RMC batching plant is a portable concrete production unit that can be assembled and disassembled quickly, ideal for projects in multiple locations or temporary construction sites. Key advantages include:
- Easy relocation between construction sites
- Quick installation time typically 7 to 14 days
- Ideal for road construction, bridge projects, remote areas
- Lower transportation cost of materials to site
Capacity range: 20 m³/hr to 90 m³/hr. Perfect for projects that require mobility and flexibility.
Mini / Small Concrete Batching Plant
A mini RMC batching plant is a compact, cost-effective option for small to medium projects, construction companies starting their first RMC operation, or contractors needing an on-site concrete supply. It requires less space and lower capital investment while still delivering accurate, high-quality concrete output.
Capacity range: 10 m³/hr to 35 m³/hr. Best for residential construction, small commercial buildings, and limited-space sites.
Dry Mix vs. Wet Mix Batching Plant
Dry Mix Plant: All dry ingredients (cement, aggregates, sand) are batched and loaded into the transit mixer truck without water. Water is added during transportation. This method is flexible and avoids mixer downtime.
Wet Mix Plant: All ingredients including water are fully mixed in the plant before loading. This produces more uniform concrete and is preferred for high-strength concrete requirements.
KM Mughal offers both dry mix and wet mix configurations based on your project requirements.
Key Components of a Ready Mix Concrete Batching Plant
A complete RMC batching plant consists of several integrated systems working together:
| Component | Function |
| Aggregate Batching System | Stores and accurately weighs sand, gravel, and crushed stone |
| Cement Silo | Stores bulk cement and feeds it to the weighing hopper |
| Weigh Hopper / Weighing System | Precisely measures each ingredient as per the mix design |
| Twin-Shaft Concrete Mixer | Mixes all ingredients to produce uniform, homogeneous concrete |
| Water & Admixture System | Accurately doses water and chemical admixtures into each batch |
| Belt Conveyor / Skip Hoist | Transfers aggregates from storage bins to the mixer |
| PLC Control System | Automates all batching, mixing, and reporting functions |
| Dust Collection System | Controls cement dust to comply with environmental standards |
| Cement Screw Conveyor | Transfers cement from the silo to the weighing hopper |
| Concrete Discharge System | Loads finished concrete into transit mixer trucks |
Key Features of KM Mughal’s Ready Mix Concrete Batching Plant
PLC Automated Control System
Our RMC plants use an advanced Programmable Logic Controller (PLC) system that fully automates the batching and mixing process. The PLC system stores mix designs, controls ingredient quantities, monitors production in real time, and generates detailed batch reports ensuring zero human error and consistent output every time.
High-Precision Weighing System
Every ingredient, cement, aggregates, water, and admixtures is measured using electronic load cells with weighing accuracy of ±1% to ±2%. This precision ensures your concrete mix design is followed exactly, batch after batch.
Powerful Twin-Shaft Concrete Mixer
Our batching plants are equipped with high-performance twin-shaft forced concrete mixers (JS series) that deliver fast, thorough mixing in every cycle. Twin-shaft mixers produce highly uniform concrete ideal for high-strength grades like C30, C40 and above.
Multiple Cement Silo Options
We offer single and multiple cement silo configurations ranging from 50 tons to 500 tons capacity. Multiple silos allow you to use different types of cementitious materials OPC, PPC, flyash, GGBS simultaneously, enabling versatile mix design capabilities.
Flexible Capacity Configurations
Available in capacities of 25 m³/hr, 35 m³/hr, 50 m³/hr, 60 m³/hr, 75 m³/hr, 90 m³/hr, and 120 m³/hr, our plants can be matched precisely to your project’s daily concrete demand — avoiding over-investment or under-capacity issues.
Heavy-Duty Steel Structure
Built from high-grade structural steel with precision welding and galvanized or painted surface treatment, our RMC plant structures are designed to withstand Pakistan’s harsh climate conditions, extreme heat in summer and cold in northern regions for a service life exceeding 20 years.
Ready Mix Concrete Batching Plant – Technical Specifications
| Specification | Small Plant | Medium Plant | Large Plant |
| Production Capacity | 25–35 m³/hr | 50–75 m³/hr | 90–120 m³/hr |
| Mixer Type | Twin-Shaft JS500 | Twin-Shaft JS1000 | Twin-Shaft JS1500 |
| Batching Machine | PLD800/1200 | PLD1600/2400 | PLD2400/3200 |
| Max Aggregate Size | 60–80 mm | 60–80 mm | 60–80 mm |
| Cement Silo Capacity | 50–100 T | 100–200 T | 200–500 T |
| Mixing Cycle | 72–90 sec | 72–90 sec | 72–90 sec |
| Control System | Semi-Auto PLC | Full-Auto PLC | Full-Auto PLC + SCADA |
| Installation Time | 7–14 days | 14–21 days | 21–45 days |
| Configuration | Mobile / Compact | Stationary / Mobile | Stationary Belt Type |
Where Are RMC Batching Plants Used in Pakistan?
Our Ready Mix Concrete Batching Plants are used across a wide range of construction sectors throughout Pakistan:
- National Highway Authority (NHA) road and motorway projects
- High-rise residential and commercial building projects in Lahore, Karachi, Islamabad
- Bridge and flyover construction
- Dam, canal, and water infrastructure projects (WAPDA projects)
- Large residential housing schemes (DHA, Bahria Town, Gulberg)
- Industrial and factory floor construction
- Airport, seaport, and railway infrastructure
- Government and military construction projects
- Precast concrete element manufacturing
- Commercial RMC plants supplying ready mix concrete to builders
Ready Mix Concrete Batching Plant vs. On-Site Manual Mixing – Why RMC Wins
| Factor | RMC Batching Plant | Manual On-Site Mixing |
| Concrete Quality | ✅ Consistent, controlled grade | ❌ Variable, uncontrolled |
| Speed | ✅ 25–120 m³/hr continuous output | ❌ Slow, labor dependent |
| Accuracy | ✅ Precise electronic weighing | ❌ Manual estimates |
| Labour Cost | ✅ Only 2–4 operators needed | ❌ Large labor force required |
| Material Wastage | ✅ Minimal – PLC-controlled dosing | ❌ High wastage |
| Project Speed | ✅ No concrete supply delays | ❌ Bottlenecks common |
| Structural Safety | ✅ Meets design strength reliably | ❌ Risk of under-strength |
| Environmental Impact | ✅ Dust-controlled, less pollution | ❌ High dust on site |
| Cost Efficiency | ✅ Lower long-term cost per m³ | ❌ High ongoing labor cost |
How to Choose the Right RMC Batching Plant for Your Project
Selecting the correct plant size and type for your specific project is critical. Here is a simple guide:
| Project Type | Recommended Plant | Capacity |
| Small residential / commercial building | Mini or Compact Stationary Plant | 25–35 m³/hr |
| Medium commercial project / housing scheme | Medium Stationary or Mobile Plant | 50–75 m³/hr |
| Large infrastructure (highway, bridge) | Large Stationary Belt Conveyor Plant | 90–120 m³/hr |
| Multi-site construction (moving project) | Mobile Batching Plant | 25–90 m³/hr |
| Commercial RMC business (selling concrete) | Stationary High-Capacity Plant | 75–240 m³/hr |
| Remote / rural area project | Mobile or Portable Plant | 25–60 m³/hr |
Not sure which plant to choose? Contact KM Mughal and our team will help you select the right capacity and configuration based on your project requirements, site conditions, and budget.
Why Choose KM Mughal for Your Ready Mix Concrete Batching Plant?
KM Mughal is one of Pakistan’s most trusted suppliers of concrete construction equipment. Here is why contractors and construction companies across Pakistan choose us:
| Reason | Benefit to You |
| Pakistan-Based Supplier | Fast delivery, no import delays, local after-sales support |
| Wide Range of Plant Types & Sizes | Stationary, mobile, mini – from 25 to 120+ m³/hr |
| PLC-Automated Systems | Precise batching, real-time monitoring, batch reports |
| Heavy-Duty Steel Construction | 20+ year service life even in Pakistan’s harsh climate |
| Custom Configuration Available | Tailor cement silos, mixer size, capacity to your needs |
| Competitive RMC Plant Pricing | Best price in Pakistan with bulk and project discounts |
| Nationwide Delivery & Installation | We deliver and commission plants across all of Pakistan |
| Technical Training Provided | Our engineers train your operators on-site |
| Strong After-Sales Support | Spare parts, maintenance, and technical assistance |
| Trusted by Major Contractors | Used in highway, building, dam, and industrial projects |
FAQs
Q1: What is the price of a Ready Mix Concrete Batching Plant in Pakistan?
The price depends on the plant type (stationary or mobile), production capacity (m³/hr), number of cement silos, mixer size, and automation level. Small plants typically range from a few million PKR for mini plants to significantly more for large-capacity stationary plants. Contact KM Mughal for a detailed quotation based on your specific requirements.
Q2: What is the production capacity of your RMC plants?
KM Mughal’s Ready Mix Concrete Batching Plants are available in capacities starting from 25 m³/hr for small plants up to 120 m³/hr for large stationary installations. Higher capacity models above 120 m³/hr can also be provided in special order. We will help you select the right capacity based on your daily concrete demand.
Q3: What is the difference between a stationary and a mobile batching plant?
A stationary batching plant is permanently installed at one location and is ideal for long-term, high-volume projects. It offers higher production capacity and is more cost-effective for continuous use. A mobile batching plant can be relocated between project sites easily and quickly making it perfect for contractors working on multiple projects or in remote areas.
Q4: How long does it take to install a Ready Mix Concrete Batching Plant?
Installation time depends on plant size and type. Mini and mobile plants can typically be installed within 7 to 14 days. Medium-capacity stationary plants take 14 to 21 days. Large-capacity stationary plants may require 30 to 45 days including civil foundation work. KM Mughal’s technical team will provide a full installation and commissioning service.
Q5: Do your batching plants come with a PLC control system?
Yes. All KM Mughal Ready Mix Concrete Batching Plants are equipped with PLC (Programmable Logic Controller) automated control systems. These systems automate the entire batching process, store mix designs, display real-time production data, and generate detailed batch reports ensuring accurate, consistent output with minimal operator involvement.
Q6: Can I start a commercial RMC business with your batching plant?
Absolutely. KM Mughal’s higher-capacity stationary plants are specifically designed for commercial RMC operations where concrete is produced and sold to multiple construction clients. Starting an RMC business in Pakistan is a highly profitable venture given the booming construction industry. Our team can guide you through the plant selection and business setup process.
Q7: Do you deliver and install batching plants outside Lahore?
Yes. KM Mughal delivers and installs Ready Mix Concrete Batching Plants across all major cities and regions of Pakistan including Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, Gujranwala, Quetta, Hyderabad, and all other cities. We also serve remote project sites for infrastructure and highway projects.
